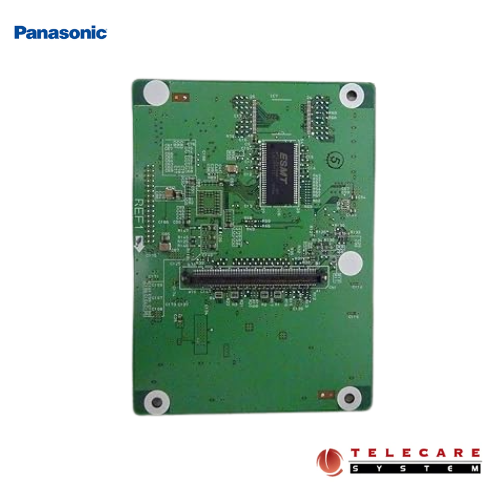

Panasonic KX-TDE0110 16 Channel DSP Card

Description

Panasonic KX-TDE0110 16-Channel VoIP DSP Card — Complete Guide for Bangladesh

The Panasonic KX-TDE0110 is a 16-channel VoIP Digital Signal Processor (DSP) card that adds IP telephony capabilities to the Panasonic KX-TDE and KX-NCP IP PBX series. Compatible with five Panasonic PBX control units — the KX-TDE100, KX-TDE200, KX-TDE600, KX-NCP500, and KX-NCP1000 — the KX-TDE0110 (also called DSP16) enables businesses in Bangladesh to modernise their office telephone systems with SIP trunking, IP phone support, and multi-branch VoIP networking. It ships with 4 IP Trunk channels and 8 IP Phone channels pre-activated, and scales to 32 IP Trunks, 64 IP Phones, and 128 SIP Extensions via additional Panasonic keycode licences.

What Is the Panasonic KX-TDE0110 DSP Card?

The Panasonic KX-TDE0110 (model designation: DSP16) is a hardware expansion card that installs inside a compatible Panasonic IP PBX chassis and provides Digital Signal Processing (DSP) resources for Voice over IP (VoIP) calls. DSP cards are required in IP PBX systems to convert analogue audio signals into digital IP packets and vice versa — without a DSP card, the PBX cannot handle VoIP calls even if IP trunks or IP phones are connected.

The KX-TDE0110 is specifically designed for the Panasonic KX-TDE and KX-NCP product families — two of the most widely deployed business PBX platforms in Bangladesh’s corporate, garments, hospitality, and educational sectors. The card mounts directly onto the IPCMPR (IP Communications Main Processing) card inside the PBX cabinet, requiring no external enclosures or additional interface hardware.

Panasonic KX-TDE0110 SPECIFICATIONS

Which PBX Systems Is the KX-TDE0110 Compatible With?

The Panasonic KX-TDE0110 is compatible with the following five Panasonic IP PBX control units:

• KX-TDE100 — Small-to-medium IP PBX, up to 288 extensions
• KX-TDE200 — Medium IP PBX, up to 576 extensions
• KX-TDE600 — Large enterprise IP PBX, up to 1,000 extensions
• KX-NCP500 — Converged IP-PBX, small-to-medium businesses, up to 256 extensions
• KX-NCP1000 — Converged IP-PBX, medium-to-large businesses, up to 512 extensions

If your organisation in Bangladesh operates any of these five systems, the KX-TDE0110 is the correct DSP16 expansion card. It is not compatible with the older KX-TDA series (which uses different DSP card formats) or the KX-NS series.

What Does “16 Channel” Mean? Understanding DSP Card Capacity

A 16-channel DSP card can process 16 simultaneous VoIP calls at one time. Each active VoIP call — whether an IP trunk call coming in from the internet or a call between an IP phone extension and an analogue trunk — consumes one DSP channel for the duration of the call.

For a Bangladeshi business with 50–200 staff, 16 simultaneous VoIP channels typically covers normal peak-hour call traffic without bottlenecking, as the average call concurrency rate in office environments is 15–25% of total extensions. If your call volume requires greater capacity, Panasonic also offers the KX-TDE0111 (DSP64), which provides 64 DSP channels on a single card.

Pre-installed Activation Keys: What’s Included Out of the Box

The KX-TDE0110 ships with two activation keys already installed on the card, providing immediate usable capacity:

• SHGW4 Key — Activates 4 IP Trunk (SIP or H.323) channels. This allows the PBX to receive and place up to 4 simultaneous calls via an internet telephony service provider (ITSP) or SIP trunk provider in Bangladesh.
• IPPT8 Key — Activates 8 IP Proprietary Telephone channels. This allows up to 8 Panasonic IP phone extensions (such as the KX-NT321 or KX-NT346) to be registered to the PBX simultaneously.

No additional licences are required to begin using the card at this base capacity. For organisations that need greater capacity, expansion keycode licences (sold separately) can increase the card’s usable channels up to its hardware maximum.

Expandable Capacity: How to Scale the KX-TDE0110

The KX-TDE0110 supports expansion through Panasonic keycode licences, which are applied via the PBX’s web-based maintenance console. The full expansion limits are:

• Up to 32 IP Trunks (SIP or H.323)
• Up to 64 IP Proprietary Telephones (Panasonic KX-NT series)
• Up to 128 SIP Extensions (SIP phones and softphones)

Available expansion keycode models include:

• KX-NCS4102 — 2-channel IP Trunk licence
• KX-NCS4104 — 4-channel IP Trunk licence
• KX-NCS4201 — 1-channel IP Phone or IP Softphone licence
• KX-NCS4208 — 8-channel IP Phone or IP Softphone licence
• KX-NCS4701 — 1-channel SIP Extension licence

This scalability model makes the KX-TDE0110 appropriate for businesses that are beginning their IP telephony migration and plan to expand VoIP usage gradually — a common deployment scenario in Dhaka-based corporate environments transitioning from legacy PSTN trunks.

CODEC Support: G.729a, G.711, and G.722

The KX-TDE0110 supports the following ITU-T voice coding standards:

• G.711 (μ-law and A-law) — Uncompressed PCM audio at 64 kbps. Highest voice quality; recommended for internal calls and environments with sufficient bandwidth. G.711 A-law is standard in Europe and Asia, including Bangladesh’s PSTN.
• G.729a — Compressed audio at 8 kbps. Suitable for SIP trunk calls over standard broadband connections. Significant bandwidth reduction with minor quality trade-off — the standard choice for internet-based SIP trunks in Bangladesh.
• G.722 — Wideband audio at 64 kbps (7 kHz bandwidth vs. standard 3.4 kHz). HD voice quality. Supported between compatible KX-NT series IP phones for internal calls.

For most Bangladeshi business deployments, G.729a is the recommended CODEC for SIP trunk calls given the variable quality of local broadband connections, while G.711 is preferred for internal IP-phone-to-IP-phone calls.

Multi-Branch Networking: Connecting Offices Across Bangladesh

One of the primary use cases for the KX-TDE0110 in Bangladesh is multi-branch VoIP networking — connecting the head office PBX (typically in Dhaka) to branch offices in Chittagong, Sylhet, Gazipur, or other locations over an IP network rather than costly leased lines or PSTN trunks.

With the KX-TDE0110 installed, the PBX can establish VoIP gateway trunks (using H.323 or SIP) between sites. Staff at branch offices can dial internal extension numbers directly, share a centralised auto-attendant, and transfer calls between locations at zero cost. For garments factories, RMG exporters, and corporate groups operating across multiple Bangladeshi cities, this significantly reduces inter-office telephony costs.

Compatible IP Phones for the KX-TDE0110 in Bangladesh

The following Panasonic IP phone models are compatible as proprietary telephone extensions on a KX-TDE0110-equipped PBX:

• KX-NT321 — 6-button IP phone, monochrome display
• KX-NT343 — 12-button IP phone with 3-line LCD
• KX-NT346 — 24-button IP phone, paper label keys, headset port
• KX-NT366 — 36-button IP phone with 6-line backlit display
• KX-NT400 — Executive IP phone with large colour touchscreen display

The KX-TDE0110 also supports 3rd-party SIP-compliant phones, including Polycom SoundPoint IP desk phones and softphone clients such as X-Lite, enabling organisations to deploy a mix of Panasonic proprietary phones and standard SIP endpoints on the same PBX system.

Installation Overview: How the KX-TDE0110 Is Fitted

The KX-TDE0110 installs as follows:

1. Power down the PBX chassis completely before inserting the card.
2. Locate the IPCMPR card slot in the PBX cabinet (slot varies by PBX model — consult the installation manual for your specific KX-TDE or KX-NCP unit).
3. Align the KX-TDE0110 with the card slot guides and firmly seat it into the connector.
4. Secure the card retention bracket if applicable.
5. Power on the PBX. The DSP card will be automatically recognised by the system firmware.
6. Access the PBX web maintenance console to verify DSP resource allocation and configure VoIP trunk/extension settings.

Installation in Bangladesh should be performed by a qualified Panasonic-authorised telecom technician. Telecare System provides professional installation and configuration services across Dhaka and surrounding areas.

Why Bangladeshi Businesses Choose the KX-TDE0110

For Corporate Offices in Dhaka: The KX-TDE0110 enables existing Panasonic TDE/NCP-based office telephone systems to add SIP trunks from local providers such as Grameenphone Business, Robi Business, or independent VoIP ITSPs — reducing monthly trunk costs versus traditional PSTN CO lines.

For Garments and RMG Sector: Multi-factory environments can use the card’s VoIP gateway networking to link production facilities to a central head office PBX, enabling free internal calling across sites and centralised receptionist functions.

For Hotels and Hospitality: KX-TDE and NCP PBX systems are widely used in Bangladeshi hotels. The KX-TDE0110 enables room phone systems to be connected to SIP trunks, reducing outgoing call costs while maintaining full PBX feature functionality.

For Educational Institutions: Universities and colleges across Bangladesh operating Panasonic TDE systems can expand IP phone coverage to administrative offices using the KX-TDE0110 without replacing the core PBX infrastructure.

KX-TDE0110 vs KX-TDE0111: Which DSP Card Do You Need?

For small-to-medium businesses in Bangladesh (up to 200 staff), the KX-TDE0110 is the appropriate starting point. Enterprises with higher concurrent call volumes should consider the KX-TDE0111 or multiple KX-TDE0110 cards.

Frequently Asked Questions (FAQ)

What is the Panasonic KX-TDE0110 used for?

The Panasonic KX-TDE0110 is a 16-channel VoIP DSP expansion card used to add IP telephony capabilities — including SIP trunk support, IP phone extensions, and VoIP gateway networking — to compatible Panasonic KX-TDE and KX-NCP PBX systems. Without a DSP card, these PBX systems cannot process VoIP calls even if IP infrastructure is connected.

Which Panasonic PBX systems are compatible with the KX-TDE0110?

The KX-TDE0110 is compatible with the following Panasonic PBX systems: KX-TDE100, KX-TDE200, KX-TDE600, KX-NCP500, and KX-NCP1000. It is not compatible with the KX-TDA series or the KX-NS series PBX systems.

How many IP trunks does the KX-TDE0110 support?

The KX-TDE0110 ships with 4 IP Trunk channels pre-activated (SHGW4 key). With additional Panasonic keycode licences (KX-NCS4102, KX-NCS4104), the card can support up to 32 IP Trunks simultaneously.

How many IP phones can connect to the KX-TDE0110?

Out of the box, the KX-TDE0110 supports 8 Panasonic IP Proprietary Telephone (IP-PT) extensions. With additional keycodes, this expands to 64 IP phones, plus up to 128 SIP-based extensions.

Does the KX-TDE0110 support SIP trunks?

Yes. The KX-TDE0110 fully supports SIP trunks, allowing businesses in Bangladesh to connect their PBX to SIP-based internet telephony service providers (ITSPs) for lower-cost outgoing calls and DID number services.

Is the KX-TDE0110 compatible with 3rd-party SIP phones?

Yes. Beyond Panasonic’s proprietary KX-NT series IP phones, the KX-TDE0110 supports standard SIP-compliant endpoints including Polycom SoundPoint IP phones, Yealink desk phones (with SIP extension keycodes), and softphone clients such as X-Lite or Zoiper.

What CODEC standards does the KX-TDE0110 support?

The KX-TDE0110 supports ITU-T G.711 (μ-law and A-law), G.729a, and G.722. G.729a is recommended for SIP trunk calls over standard broadband in Bangladesh. G.711 is preferred for internal IP-phone calls. G.722 delivers HD voice quality between compatible Panasonic IP phones.

Can the KX-TDE0110 connect multiple offices?

Yes. The card supports VoIP gateway trunks (H.323 and SIP) that can link multiple PBX systems across different office locations over an IP network. For Bangladeshi businesses with offices in Dhaka, Chittagong, Sylhet, or other cities, this enables free inter-office calling and a unified internal extension plan.

Where can I buy the Panasonic KX-TDE0110 in Bangladesh?

The Panasonic KX-TDE0110 16-Channel DSP Card is available from Telecare System in Dhaka, Bangladesh. We supply genuine Panasonic PBX expansion cards with professional installation and after-sales support. Contact us for current pricing and stock availability.

Does the KX-TDE0110 require professional installation?

Yes. The KX-TDE0110 installs inside the PBX chassis and requires access to the system’s maintenance console for proper configuration of VoIP trunks, extension registrations, and CODEC settings. Telecare System provides full installation and commissioning services in Dhaka and across Bangladesh.

Panasonic KX-TDE0110 is the essential DSP expansion card for any organisation in Bangladesh operating a Panasonic KX-TDE or KX-NCP IP PBX system that wants to add or expand VoIP telephony. It delivers 16 channels of VoIP processing, ships ready-to-use with 4 IP Trunk and 8 IP Phone licences pre-installed, and scales to 32 trunks, 64 IP phones, and 128 SIP extensions with Panasonic keycodes.

Telecare System is your trusted Panasonic telephony partner in Dhaka, Bangladesh. We supply, install, and configure Panasonic IP PBX expansion cards for corporate offices, garments factories, hotels, and institutions. Contact us today for pricing, compatibility assessment, and professional installation support.
