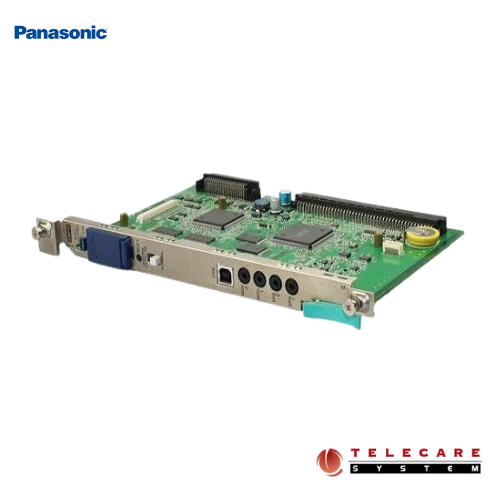

Panasonic KX-TDA600 PABX CPU
Panasonic KX-TDA600 CPU Key Features
- Hybrid IP-PBX with 32-bit EMPR processor at 200MHz / 360MIPS
- Maximum 960 extensions (1,120 with DXDP) and 640 analog CO lines
- ISDN-PRI, T1, Analog POTS, and VoIP H.323 trunk support
- Up to 43 universal slots across 4 cabinets (1 main + 3 expansion)
- DECT multi-cell wireless — 128 cell stations and 256 portable handsets
Call For Best Price 01731605422 (WhatsApp)
Description
Panasonic KX-TDA600 PABX CPU — Bangladesh’s Top Choice for Large Enterprise Communication
When your business has grown beyond the point where a small PABX can keep up, you need something built for serious scale. The Panasonic KX-TDA600 CPU (EMPR — Enhanced Main Processor) is exactly that — the beating heart of Panasonic’s flagship large-enterprise Hybrid IP-PBX system, trusted by corporate offices, hospitals, hotels, and call centers across Bangladesh and around the world.
Built on over twenty years of business communications expertise, the KX-TDA600 delivers a complete hybrid IP-PBX solution designed for organizations with 200+ extensions, seamlessly combining voice and data in one scalable, next-generation architecture. The EMPR processor card is what makes it all possible — managing system intelligence, bus communication, call routing, and expansion across up to four cabinets.
The EMPR features a powerful 32-bit CPU running at 200MHz with 360MIPS processing power — twice as fast as the processors used in the KX-TDA100 and KX-TDA200 systems — ensuring smooth, lag-free handling of high call volumes without breaking a sweat. Whether you’re running a busy corporate headquarters in Dhaka or a large hotel property outside the capital, this processor is engineered to handle the load.
The KX-TDA600 main unit ships with 10 free universal slots, and you can add up to three expansion shelves, each contributing 11 additional universal slots — giving you 43 maximum universal slots across the full system. That level of expandability is rare in the Bangladesh market and is a primary reason enterprises choose this system for long-term investment.
Panasonic KX-TDA600 CPU Specifications
| Specification | Details |
|---|---|
| Model | Panasonic KX-TDA600 (EMPR CPU Card) |
| System Type | Hybrid IP-PBX (Large Enterprise) |
| CPU Speed | 32-bit, 200MHz, 360MIPS |
| Max CO Lines | 640 (Analog) |
| Max VoIP H.323 Trunks | 32 |
| Max Total Extensions | 960 (1,120 with DXDP) |
| Max Digital Proprietary Ext. | 512 (640 with T7600/DT300 series) |
| Max IP Proprietary Extensions | 640 |
| Max SLT Extensions | 960 |
| Max Analog Proprietary Ext. | 320 |
| Universal Slots (Main Unit) | 10 |
| Max Universal Slots (Full) | 43 (with 3 expansion cabinets) |
| Expansion Cabinets | Up to 3 (KX-TDA620) |
| Max DECT Cell Stations | 128 |
| Max Portable DECT Handsets | 256 (512 with memory expansion) |
| Max DSS Consoles | 64 |
| Max Doorphones | 64 |
| Trunk Types Supported | Analog POTS, ISDN-PRI, T1, VoIP H.323 |
| Programming Interface | PC (LAN, USB, RS-232C), Modem |
| Dimensions (Per Shelf) | 430mm x 415mm x 270mm |
| Weight | 12 kg |
| Voicemail Integration | KX-TVA Series |
Why You Buy Panasonic KX-TDA600 CPU
- Unmatched Scalability for Growing Bangladeshi Enterprises — Most PABX systems in the Bangladesh market hit a hard ceiling at 100–200 extensions. The KX-TDA600 scales all the way to 640 CO lines and 960 total extensions — one of the largest capacities available in the Bangladesh market — making it the only logical choice for hospitals, hotels, garment factories, and large corporate HQs that cannot afford to swap systems every few years. Telecare System
- Hybrid Architecture Protects Your Existing Infrastructure Investment — Migrating to a fully IP-based system overnight is expensive and risky. Because of its hybrid architecture, the KX-TDA600 is often the preferred PBX where there is a need for large numbers of multiline digital extensions, IP network extensions, single line extensions, and personal cellular extensions simultaneously — meaning you keep your existing analog lines and phones working while gradually upgrading to IP at your own pace.
- Modular Free-Slot Design Means You Only Pay for What You Need — With the KX-TDA600’s free slot architecture, you can easily add expansion cards and access new features as the system grows, enhancing capabilities without having to change the entire system — protecting your investment and keeping upgrade costs predictable for finance teams and procurement managers in Bangladesh.
At Telecare System, we deliver quickly, safely, and affordably across Bangladesh. After placing your order, you’ll receive a confirmation email, and our support team will follow up with a call to assist you.
Delivery Options:
- Within Dhaka: 1-2 business days, BDT 150.
- Outside Dhaka: 2-3 business days, BDT 150.
For any questions, please contact us—we’re here to help!
