Panasonic KX-DT543 Master Telephone Set

Description

Panasonic KX-DT543 Master Telephone Set for PABX Intercom

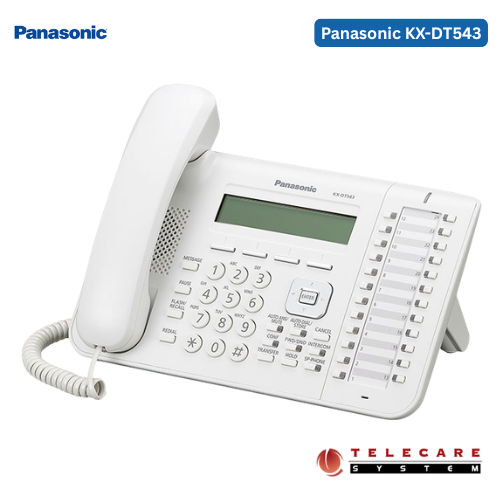

Panasonic KX-DT543 is a digital proprietary master telephone designed for use with Panasonic PABX systems including the KX-TDA, KX-TDE, KX-NCP, and KX-NS series. It features a 3-line backlit graphical LCD, 24 freely programmable function keys, a built-in full-duplex speakerphone, and an Electronic Hook Switch (EHS) port for wireless headset connectivity. Powered directly through the PABX extension line — no external adapter required — the KX-DT543 is a go-to intercom telephone for executives, receptionists, and team leads in office environments.

What Is the Panasonic KX-DT543?

The Panasonic KX-DT543 belongs to the KX-DT500 Series of Digital Proprietary Telephones (DPT), engineered specifically for deployment within Panasonic PBX ecosystems. It is not a standalone telephone — it functions as a wired extension unit managed and powered by a compatible Panasonic PABX, making it a proprietary device rather than a generic analog or VoIP phone.

The telephone is built for high-call-volume business environments where reliability, call visibility, and rapid internal communication matter. With dual-color LED indicators on each flexible key (green for intercom, red for outside lines), staff can instantly identify call type and line status without lifting the handset. The intuitive alphanumeric display supports phonebook lookup, call log browsing, and real-time caller ID — all with a few key presses.

Available in both black (KX-DT543-B) and white color options, the KX-DT543 integrates smoothly into any office aesthetic while delivering the communication capability that modern businesses require.

Panasonic KX-DT543 Specifications

Who Should Use the Panasonic KX-DT543?

KX-DT543 is best suited for roles where call volume, internal coordination, and line visibility are daily priorities. In many real-world deployments, this phone appears at reception desks, in manager offices, and at operator stations — positions where missing a call or misidentifying a line type carries real operational cost.

Specifically, the KX-DT543 fits:

• Receptionists and front-desk operators managing multiple external and intercom lines simultaneously
• Executives and managers who need fast one-touch access to direct reports or departments
• Call center supervisors who monitor agent extensions via DSS keys
• Office administrators in healthcare, hospitality, education, and corporate environments where Panasonic PABX systems are already installed

One frequently observed challenge in these environments is choosing a telephone with too few programmable keys — staff end up navigating menus for tasks that should be one-touch operations. The 24 programmable keys on the KX-DT543 address this directly, and the optional KX-DT590 console extends that to 72 keys for high-demand positions.

How Does the KX-DT543 Intercom Work?

The Panasonic KX-DT543 intercom functions through the Panasonic PABX system rather than independently. When an internal call is made, the PABX routes it between extensions using digital signaling over the proprietary loop — the KX-DT543’s Intercom key initiates this connection instantly without dialing an external number.

The Message/Ringer Lamp on the unit distinguishes call types at a glance: green flashing for intercom calls, red flashing for external (CO line) calls, and solid red when a voicemail message is waiting. This visual differentiation is one of the most practically useful aspects of the phone in a busy office — staff can decide how to prioritize before even picking up the handset.

For hands-free internal communication, the Off Hook Monitor feature allows the called party’s speaker to activate so the caller can speak before the handset is lifted — a common requirement in operations rooms and dispatch environments.

KX-DT543 vs KX-DT546 — What’s the Difference?

For most business users deploying a standard Panasonic PABX intercom setup, the KX-DT543 provides the right balance of features at a more accessible price. The KX-DT546 is better suited for operator positions with very high call volumes where the larger display and additional line visibility justify the cost difference.

Compatible PBX Systems

The Panasonic KX-DT543 is a digital proprietary telephone and requires a compatible Panasonic PABX to function. It does not work with analog telephone lines or VoIP systems independently.

Verified compatible systems include:

• KX-NS Series — KX-NS300, KX-NS500, KX-NS700, KX-NS1000
• KX-NCP Series — KX-NCP500, KX-NCP1000
• KX-TDE Series — KX-TDE100, KX-TDE200, KX-TDE600
• KX-TDA Series — KX-TDA30 and compatible TDA variants

Important: Always verify your specific PBX software version with your Panasonic dealer before purchasing. Some features may require a minimum firmware version on the host PABX.

Common Mistakes When Setting Up the KX-DT543

A few installation errors come up repeatedly across business deployments:

1. Connecting to an incompatible PBX line type. The KX-DT543 requires a digital extension port (DLC/DHLC) on the PABX — not an analog port. Plugging it into an analog extension will prevent it from powering on.
2. Skipping EHS headset compatibility checks. Not all Plantronics headsets work with EHS on every PABX firmware version. Confirm headset compatibility with your dealer before purchasing wireless headsets for this unit.
3. Attaching more than one KX-DT590 console during wall mounting. The manual is clear: only one KX-DT590 can be attached when wall-mounting the KX-DT543. Attempting to add a second console in this configuration is unsupported.
4. Assuming VoIP compatibility. The KX-DT543 is not a VoIP phone. Businesses migrating to cloud-based telephony will need to evaluate IP terminal alternatives (such as the KX-NT series) rather than repurposing this unit on a SIP/VoIP platform.
5. Neglecting firmware verification. Features like EHS headset support and certain call handling features depend on the PABX running the minimum required software version. An outdated PBX can make specific KX-DT543 features unavailable even if the physical hardware is installed correctly.

Read More

FAQ

Q: What PBX systems is the Panasonic KX-DT543 compatible with?

A: The KX-DT543 is compatible with Panasonic digital PABX systems including the KX-NS, KX-NCP, KX-TDE, and KX-TDA series. It requires a digital extension port (DLC or DHLC) on the host PBX to operate. It is not compatible with analog telephone lines or standalone VoIP systems.

Q: Does the Panasonic KX-DT543 need an external power adapter?

A: No. The KX-DT543 is powered directly through the PABX digital extension line, drawing current from the host system. There is no need for a separate power supply or PoE injector, which simplifies installation and reduces desk clutter.

Q: How many programmable keys does the KX-DT543 have?

A: The KX-DT543 includes 24 freely programmable function keys, each with a dual-color LED (red/green) for line status indication. By attaching the optional KX-DT590 DSS console, this expands to 72 programmable keys — useful for operator or reception positions managing large numbers of extensions.

Q: Can the KX-DT543 be used with wireless headsets?

A: Yes. The KX-DT543 includes a 3.5mm Electronic Hook Switch (EHS) port that is compatible with selected Plantronics DECT wireless headsets, allowing users to answer and end calls remotely without touching the phone. A standard 2.5mm wired headset jack is also available for conventional headset use.

Q: What is the difference between the KX-DT543 and KX-DT546?

A: The primary differences are the LCD size and display lines. The KX-DT543 has a 3-line display, while the KX-DT546 features a 6-line display for greater call and feature visibility. Both share 24 programmable keys and EHS support. The KX-DT546 is typically chosen for high-traffic operator positions where the larger display makes managing multiple simultaneous calls easier.

Q: Is the Panasonic KX-DT543 wall mountable?

A: Yes. The KX-DT543 supports wall mounting using an optional wall mounting adapter. If using the KX-DT590 DSS console with wall mounting, only one console unit can be attached in this configuration.

Q: Does the KX-DT543 support caller ID?

A: Yes, when connected to a compatible Panasonic PABX system that is configured to deliver caller ID information. Caller details appear on the 3-line backlit LCD display. The phone also maintains an incoming and outgoing call log accessible directly on the display.

Q: Can two telephones share one extension using the KX-DT543?

A: Yes. The KX-DT543 includes an Extra Device Port (XDP) and Digital Extra Device Port (DXDP), which allow a second digital telephone or compatible accessory to share the same PABX extension line without requiring an additional digital card port.

Q: Is the Panasonic KX-DT543 compatible with VoIP or SIP systems?

A: No. The KX-DT543 is a digital proprietary telephone designed exclusively for Panasonic PABX infrastructure. It does not support SIP or generic VoIP protocols. Businesses operating on cloud PBX or SIP-based telephony should consider Panasonic’s KX-NT or KX-HDV IP terminal series instead.

Q: What headsets are compatible with the KX-DT543’s 2.5mm wired headset port?

A: The 2.5mm wired headset jack is compatible with Panasonic RP-TCA400 and KX-TCA430 headsets, as well as standard office headsets using a 2.5mm mono connector. For wireless DECT headsets, use the EHS port with confirmed Plantronics-compatible models.

The Panasonic KX-DT543 is a dependable, feature-complete digital telephone built for businesses already operating on Panasonic PABX infrastructure. Its combination of 24 programmable keys, wideband audio, full-duplex speakerphone, EHS wireless headset support, and a clear 3-line backlit display makes it a practical choice for executive desks, reception counters, and operator stations where internal communication speed and call visibility directly affect productivity.

It is not the right choice for businesses migrating to cloud telephony or VoIP — for those environments, Panasonic’s IP terminal range is the appropriate path. But for organizations running KX-TDA, KX-TDE, KX-NCP, or KX-NS PABX systems, the KX-DT543 remains one of the most widely trusted and easily maintained PABX intercom telephones available.

For volume orders, compatibility verification, or system configuration support, contact our sales team — we provide fast delivery and after-sales technical assistance across Bangladesh.
