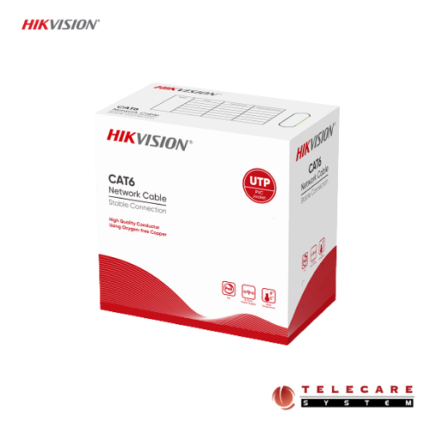

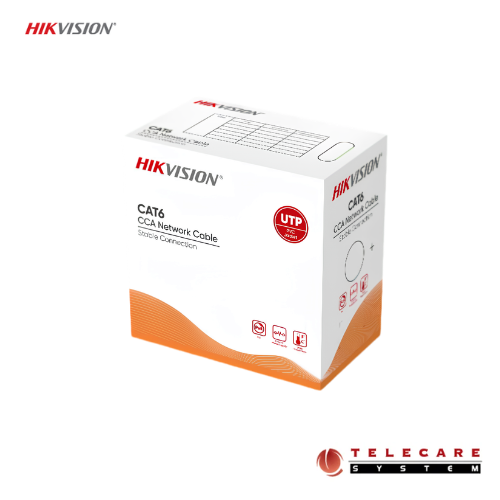

Hikvision DS-1LN6-Z/CCA
7,500.00৳
Hikvision DS-1LN6-Z/CCA Key Features
- Cat6 U/UTP CCA Network Cable
- 23AWG Copper Clad Aluminum (CCA) conductor
- Supports bandwidth up to 250MHz
- 305 Meter (1000 Feet) cable length
- Excellent Fluke Channel Test performance
- Durable PVC outer jacket
- High tensile and compressive strength
- Compliant with ANSI/TIA-568.2-D
- RoHS 2.0 certified
- Ideal for CCTV, IP Camera, Router, Switch, and LAN networking
Call For Best Price  01731605422 (WhatsApp)
Description
Hikvision DS-1LN6-Z/CCA is a high-quality Cat6 UTP CCA network cable designed for CCTV surveillance systems, IP cameras, office networking, and home LAN installations. Manufactured to meet ANSI/TIA-568.2-D standards, this cable delivers stable data transmission up to 250MHz, making it suitable for Gigabit Ethernet applications. Its durable PVC jacket provides excellent mechanical protection during installation, while the Fluke-tested performance ensures dependable connectivity for long-distance networking projects.
Hikvision DS-1LN6-Z/CCA Specifications
| Specification | Details |
|---|---|
| Product Name | Hikvision DS-1LN6-Z/CCA |
| Cable Category | Cat6 |
| Cable Type | U/UTP |
| Conductor Material | Copper Clad Aluminum (CCA) |
| Conductor Size | 23 AWG |
| Cable Length | 305m (1000ft) |
| Bandwidth | Up to 250MHz |
| Jacket Material | PVC |
| Insulation Material | HDPE |
| Outer Diameter | Approximately 6.0mm |
| Impedance | 100 ±15Ω |
| Delay Skew | ≤45ns/100m |
| Standard | ANSI/TIA-568.2-D |
| Certification | RoHS 2.0 |
| Application | Indoor |
Performance
Hikvision DS-1LN6-Z/CCA provides reliable network performance for CCTV surveillance and Ethernet installations. Its 23AWG CCA conductor ensures stable transmission for IP cameras, NVRs, switches, routers, and structured cabling projects. The cable has successfully passed Fluke channel testing, demonstrating dependable signal quality for professional networking environments.
Applications
- IP Camera Installation
- CCTV Surveillance Systems
- Office LAN Networks
- Home Networking
- Router & Switch Connections
- Structured Cabling Projects
- Internet Distribution
- Educational Institutions
- Commercial Buildings
Why Choose Hikvision DS-1LN6-Z/CCA?
- Trusted Hikvision networking solution
- Consistent Gigabit Ethernet performance
- Durable PVC jacket for longer service life
- Fluke-tested quality
- Easy cable pulling and installation
- Cost-effective Cat6 networking cable
- Suitable for professional CCTV installers
Frequently Asked Questions
Is the Hikvision DS-1LN6-Z/CCA a pure copper cable?
No. This model uses a 23AWG Copper Clad Aluminum (CCA) conductor.
Is this cable suitable for IP cameras?
Yes. It is widely used for IP camera, NVR, router, switch, and LAN networking installations.
What is the cable length?
The cable comes in a 305-meter (1000-foot) roll.
Is it suitable for indoor installation?
Yes. The PVC jacket is designed for indoor networking applications.
Does it support Gigabit Ethernet?
Yes. As a Cat6 cable meeting ANSI/TIA-568.2-D specifications, it supports Gigabit Ethernet when installed within recommended limits.
At Telecare System, we deliver quickly, safely, and affordably across Bangladesh. After placing your order, you’ll receive a confirmation email, and our support team will follow up with a call to assist you.
Delivery Options:
- Within Dhaka: 1-2 business days, BDT 150.
- Outside Dhaka: 2-3 business days, BDT 150.
For any questions, please contact us—we’re here to help!
