Hikvision DS-1LN6UZC0
19,000.00৳
Hikvision DS-1LN6UZC0 Key Features
CAT6 U/UTP Network Cable (Solid Copper, 0.5mm)
- Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
- Compliant with RoHS 2.0.
Call For Wholesale Price 01731605422 (WhatsApp)
Description

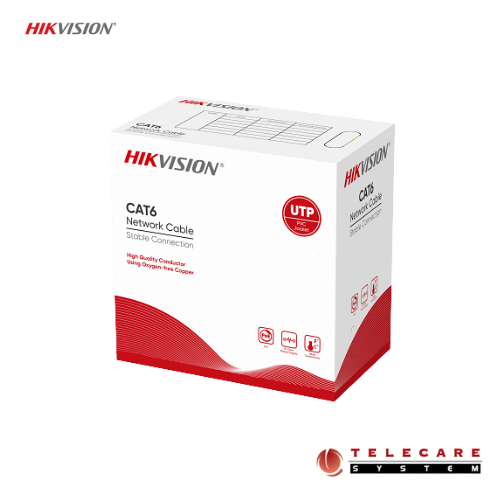

Hikvision DS-1LN6UZC0 — CAT6 U/UTP Network Cable (Solid Copper, 0.5 mm)
Hikvision DS-1LN6UZC0 is a premium Category 6 unshielded twisted-pair (U/UTP) network cable engineered by Hikvision — the world’s leading supplier of innovative video surveillance products and solutions. Designed specifically for indoor structured cabling deployments, this cable delivers reliable, high-speed Ethernet connectivity with exceptional Power over Ethernet (PoE) performance. Built around solid bare copper conductors, it ensures low resistance, superior signal integrity, and stable transmission over the full rated distance, making it the ideal choice for professional IP camera installations, enterprise LAN infrastructure, and any application that demands uninterrupted data and power delivery over a single cable run.
-
Solid Bare Copper Conductors (24 AWG / 0.50 mm) — Unlike copper-clad aluminium (CCA) alternatives, the DS-1LN6UZC0 uses 99.95% pure solid bare copper, providing significantly lower DC resistance, reduced voltage drop, and superior heat dissipation. This translates directly into longer cable runs and more reliable PoE power delivery to connected devices such as IP cameras, access points, and VoIP phones.
-
PoE-Optimised Performance — The cable has been rigorously verified to pass the Fluke 100-metre channel test while continuously loaded with 57 V / 1 A DC power, the most demanding PoE scenario in real-world surveillance and networking deployments. This ensures that your PoE-powered devices receive consistent, stable power without degradation of data throughput, even at maximum cable length.
-
250 MHz Bandwidth — As a fully compliant Category 6 cable, the DS-1LN6UZC0 supports frequencies up to 250 MHz, enabling Gigabit Ethernet (1000BASE-T) and beyond. It is fully backward compatible with 10BASE-T, 100BASE-TX, and 1000BASE-T applications, providing future-proof connectivity for evolving network demands.
-
Fluke Test Verified — Every production batch undergoes comprehensive Fluke channel testing to guarantee that the cable meets or exceeds the stringent performance thresholds required for certified structured cabling installations. Installers can deploy with confidence, knowing the cable will pass on-site certification testing.
-
Stable Electrical Performance — The cable complies with ANSI/TIA-568.2-D, IEC 61156, and ISO/IEC 11801 international standards, ensuring consistent electrical characteristics including near-end crosstalk (NEXT), return loss, and insertion loss across the full operating temperature range.
-
Rip Cord Included — A built-in rip cord simplifies jacket stripping during termination, saving installation time and reducing the risk of damaging the internal conductors.
Hikvision DS-1LN6UZC0 Technical Specifications
|
Parameter
|
Specification
|
|---|---|
| Category | Cat 6 |
| Cable Structure | U/UTP (Unshielded Twisted Pair) |
| Number of Pairs | 4 |
| Conductor Material | Solid Bare Copper |
| Conductor Diameter | 0.50 ± 0.01 mm (24 AWG) |
| Insulation Material | HDPE (High-Density Polyethylene) |
| Insulation Diameter | 0.88 ± 0.05 mm |
| Sheath Material | PVC (Grey) |
| Sheath Thickness | 0.50 ± 0.05 mm |
| External Diameter (O.D.) | 6.0 ± 0.30 mm |
| Bandwidth | Up to 250 MHz |
| Cable Length | 305 ± 1.5 m (1,000 ft) |
| Fire Resistance Rating | CPR Fca |
| Rip Cord | Yes |
| Ambient Temperature Range | -20 °C to 70 °C |
| Maximum Operating Voltage | 57 V |
| Minimum Bend Radius | 6 – 8 × O.D. |
| Weight | ~9.9 ± 0.5 kg per box/reel |
| Compliance Standards | ANSI/TIA-568.2-D, IEC 61156, ISO/IEC 11801, RoHS 2.0 |
Ideal Applications
-
IP Surveillance Systems — Purpose-built for Hikvision IP cameras and NVR systems, delivering both data and PoE power with maximum reliability over 100-metre runs. The solid copper construction is particularly important for high-power PTZ cameras that draw significant PoE budget.
-
Enterprise & Office LAN — Deploy in commercial buildings, offices, and campuses where Gigabit Ethernet connectivity is required. The cable’s compliance with international TIA and ISO standards ensures seamless integration with certified patch panels, jacks, and other Cat 6 components.
-
Access Points & Wi-Fi Infrastructure — Power and connect Wi-Fi 6/6E access points in ceiling and wall-mount installations where cable quality directly impacts both data throughput and PoE power delivery.
-
Smart Building Systems — Suitable for connecting IoT devices, building automation controllers, access control panels, and other PoE-enabled endpoints within intelligent building infrastructure.
Why Choose DS-1LN6UZC0?
The Hikvision DS-1LN6UZC0 stands apart from budget cables on the market by using genuine solid bare copper rather than inferior CCA conductors. This fundamental material difference means lower signal attenuation, better heat management under PoE load, and longer service life. Combined with Hikvision’s manufacturing quality control, Fluke certification testing, and full compliance with international cabling standards, the DS-1LN6UZC0 represents a dependable, cost-effective choice for professionals who refuse to compromise on cable quality. Whether you are wiring a new surveillance deployment or upgrading an existing LAN, this cable delivers the performance and peace of mind that installers and system integrators demand.
At Telecare System, we deliver quickly, safely, and affordably across Bangladesh. After placing your order, you’ll receive a confirmation email, and our support team will follow up with a call to assist you.
Delivery Options:
- Within Dhaka: 1-2 business days, BDT 150.
- Outside Dhaka: 2-3 business days, BDT 150.
For any questions, please contact us—we’re here to help!
