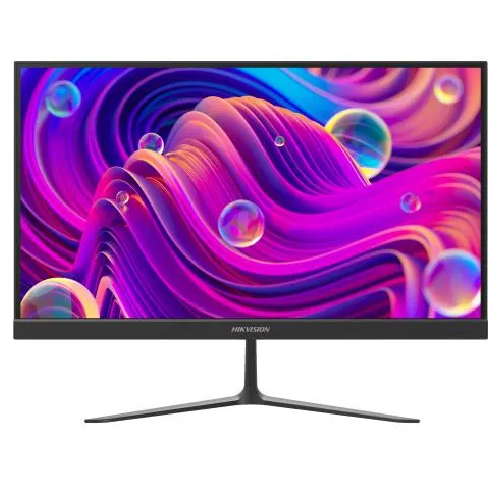

Hikvision 22 inch Monitor
10,000.00৳
Hikvision DS-D5022F2-CBD/2P2 21.5 Monitor Key features
• 21.5-inch IPS panel, Full HD 1920×1080 resolution
• 100Hz refresh rate — smooth visuals for office, CCTV monitoring, and casual gaming
• 6.5ms GtG response time — reduced motion blur
• 178° wide viewing angle (H/V) — consistent color from any position
• Low Blue Light technology — eye care for extended use
• 3D Noise Reduction — sharper footage in low-light CCTV review
• HDMI 1.4 + VGA dual connectivity — compatible with DVRs, NVRs, PCs, and laptops
• VESA 75×75mm wall mount — flexible desk or wall installation
• 8-bit LVDS E-LED backlight — 16.7 million colors, 72% NTSC
• ≤24W power consumption — efficient for 24/7 monitoring environments
• Includes: HDMI cable (1.5m), power adapter (12V/2A), base, user manual
Call For Best Price  01731605422 (WhatsApp)
Description
Hikvision 22 inch Monitor DS-D5022F2-CBD/2P2 21.5″ 100Hz Full HD IPS Monitor is available in Bangladesh from Telecare System — an authorized Hikvision product supplier — with a 3-year warranty and competitive pricing. This monitor delivers accurate Full HD visuals at a 100Hz refresh rate, making it the right choice for office workstations, CCTV control rooms, small business monitoring setups, and everyday home computing.
Hikvision 22 inch Monitor Specifications
| Specification | Details |
|---|---|
| Model | DS-D5022F2-CBD / DS-D5022F2-2P2 |
| Display Size | 21.5 inches (21.45″ viewable) |
| Panel Type | IPS (In-Plane Switching) |
| Backlight | E-LED |
| Resolution | 1920 × 1080 (Full HD) |
| Color Depth | 8-bit LVDS — 16.7 million colors |
| Color Gamut | 72% NTSC |
| Refresh Rate | Up to 100Hz (typical 60Hz) |
| Response Time | 6.5ms GtG |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178° (H) / 178° (V) |
| Pixel Pitch | 0.241 mm × 0.241 mm |
| Active Display Area | 478.656 mm (H) × 260.280 mm (V) |
| Screen Surface | Anti-glare (Haze 25%, 3H) |
| Connectivity | HDMI 1.4 × 1, VGA × 1 |
| VESA Mount | 75 × 75 mm |
| Stand | V-shaped metal base (included) |
| Bezel Width | 2mm (top/left/right), 21mm (bottom) |
| Power Supply | DC 12V, 2.0A (adapter included) |
| Power Consumption | ≤24W (operation), ≤0.5W (standby) |
| Dimensions (with stand) | 493.26 × 367.02 × 162.73 mm |
| Net Weight | ~2.0 kg |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 20%–90% RH (non-condensing) |
| Reliability Rating | 7 × 16H |
| Warranty | 3 years (Bangladesh) |
| In Box | Monitor, base, power adapter (12V/2A), HDMI cable (1.5m), user manual, multi-language manual |
What is the Hikvision 22 inch Monitor DS-D5022F2-CBD/2P2?
The Hikvision DS-D5022F2-CBD (also sold as the DS-D5022F2-2P2) is a 21.5-inch entry-level LCD monitor from Hikvision’s display range. It uses an IPS (In-Plane Switching) panel with an 8-bit LVDS E-LED backlight, delivering Full HD 1920×1080 resolution and wide 178° viewing angles in both horizontal and vertical directions. The 100Hz refresh rate and 6.5ms GtG response time make it noticeably smoother than standard 60Hz office monitors, while the Low Blue Light design and 3D Noise Reduction technology provide comfort and clarity during extended use.
Hikvision 22 inch Monitor Ideal for CCTV and Surveillance Monitoring
As a Hikvision product, the DS-D5022F2-CBD pairs directly with Hikvision DVRs and NVRs via HDMI or VGA. Security professionals and business owners setting up CCTV control rooms in Dhaka and across Bangladesh will find this monitor particularly well-suited: the 100Hz refresh rate ensures smooth real-time video playback, the 178° viewing angle allows multiple operators to view footage from different positions, and the 3D Noise Reduction feature enhances image clarity on camera feeds in low-light conditions. With ≤24W power consumption, it is efficient enough for 24/7 monitoring environments. VESA 75×75mm mounting compatibility allows the monitor to be wall-mounted in control rooms or mounted on multi-monitor arms.
Compatible devices include: Hikvision DS-7200 series DVRs, DS-7700 series DVRs, DS-9600 series DVRs, and any Hikvision NVR with HDMI or VGA output.
Display Performance
The IPS panel provides consistent brightness and color accuracy regardless of viewing position — a significant advantage over TN panels in collaborative office or multi-operator monitoring environments. The 250 cd/m² brightness ensures clear visibility in well-lit office environments. The 1000:1 contrast ratio and 72% NTSC color gamut produce natural, accurate colors suitable for both business documents and media content. The anti-glare screen surface (Haze 25%, 3H hardness) reduces reflections without sacrificing sharpness.
Connectivity and Installation
The monitor includes dual connectivity: HDMI 1.4 and VGA ports. An HDMI cable (1.5m) is included in the box, allowing immediate connection to a PC, laptop, or DVR. The VGA port ensures compatibility with older workstations and security system hardware. The VESA 75×75mm mounting pattern supports wall mounting and monitor arm installation — an in-box stand with V-shaped metal base is also included for standard desk use.
Power is supplied via an included 12V/2A adapter. The monitor draws ≤24W during operation and ≤0.5W in standby, qualifying it as an energy-efficient option for always-on environments.
Eye Care and Long-Session Comfort
The built-in Low Blue Light filter reduces the volume of high-energy short-wave light emitted by the screen, lowering eye strain during extended work sessions. The integrated 3D Noise Reduction technology processes the display signal to reduce visual noise, producing cleaner, sharper images — particularly useful when reviewing CCTV footage captured in low-light conditions. The ultra-thin three-sided bezel (2mm top, left, right / 21mm bottom) minimizes visual distraction during long work periods.
Warranty and After-Sales Support
The Hikvision DS-D5022F2-CBD/2P2 comes with a 3-year manufacturer warranty in Bangladesh. Telecare System provides after-sales support from our showroom at National Stadium Market, Rajuk Avenue, Dhaka. For warranty claims and technical assistance, contact our team directly.
Hikvision 22 inch Monitor Frequently Asked Questions
Q: What is the price of the Hikvision DS-D5022F2-CBD/2P2 in Bangladesh?
A: The current price is 10,000 Taka at our Dhaka showroom. Contact Telecare System for the latest pricing and any ongoing offers.
Q: What is the difference between the DS-D5022F2-CBD and DS-D5022F2-2P2?
A: The DS-D5022F2-CBD and DS-D5022F2-2P2 refer to the same monitor model — CBD denotes the Bangladesh-specific variant designation while 2P2 indicates the stand configuration. Core specifications are identical: 21.5″ IPS, 100Hz, 1920×1080, HDMI + VGA.
Q: Is this monitor compatible with Hikvision DVRs and NVRs?
A: Yes. The DS-D5022F2-CBD/2P2 connects to any Hikvision DVR or NVR with HDMI or VGA output. Both ports are included and an HDMI cable is supplied in the box.
Q: What is the actual response time of this monitor?
A: The official Hikvision specification lists 6.5ms GtG (grey-to-grey) response time. Some retailers incorrectly list 1ms — Telecare provides the verified specification from Hikvision’s official datasheet.
Q: Is this monitor suitable for gaming?
A: Yes for casual gaming. The 100Hz refresh rate and 6.5ms response time provide a smooth experience for casual gaming. For competitive esports, a monitor with 1ms TN panel and 144Hz+ is generally preferred.
Q: Does it support wall mounting?
A: Yes. VESA 75×75mm mounting is supported. The monitor can be mounted on any compatible wall bracket or monitor arm.
Q: What is the warranty period in Bangladesh?
A: 3 years manufacturer warranty. Telecare System provides warranty support from our Dhaka location.
Q: Can this monitor display 16.7 million colors?
A: Yes. The 8-bit IPS panel with E-LED backlight displays 16.7 million colors across a 72% NTSC color gamut, providing natural and accurate color reproduction.
Q: Does it have built-in speakers?
A: No. The DS-D5022F2-CBD/2P2 does not include built-in speakers. For audio, connect external speakers or headphones to your PC or DVR.
Q: What is included in the box?
A: Monitor, V-shaped metal base, 12V/2A power adapter, HDMI cable (1.5m), user manual, and multi-language manual.
At Telecare System, we deliver quickly, safely, and affordably across Bangladesh. After placing your order, you’ll receive a confirmation email, and our support team will follow up with a call to assist you.
Delivery Options:
- Within Dhaka: 1-2 business days, BDT 150.
- Outside Dhaka: 2-3 business days, BDT 150.
For any questions, please contact us—we’re here to help!
