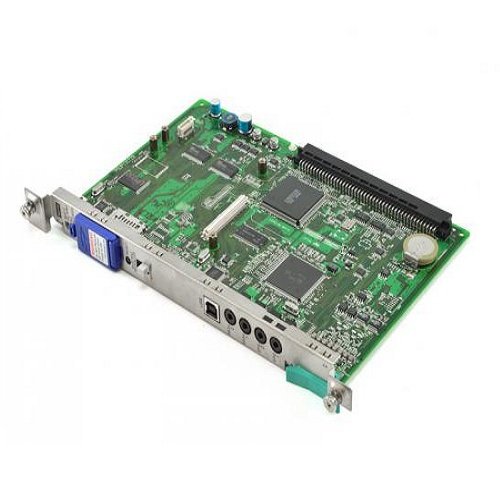

Panasonic KX-TDA200 CPU

Description

When your organization has outgrown a basic intercom setup but isn’t quite ready for a large-scale enterprise switch, the Panasonic KX-TDA200 CPU hits exactly the right mark. This is the Main Processing Card (MPR) — the central intelligence unit — that drives the entire KX-TDA200 Hybrid IP-PBX system, managing every call, every extension, and every trunk connection your business relies on daily.

Designed for mid-to-large enterprises in Bangladesh, the Panasonic KX-TDA200 CPU is particularly well-suited for corporate offices, hospitals, hotels, garments industries, educational institutions, and call centers where reliable, scalable, and feature-rich internal communication is not optional — it’s critical. The system’s hybrid architecture means it comfortably handles both traditional analog and modern IP telephony without forcing you to rip out your existing infrastructure.

The KX-TDA200 houses 11 free universal slots, giving it a total capacity of 192 ports — and those slots are truly flexible, meaning any slot can accommodate any type of trunk, extension, or option card. That architectural flexibility alone sets it apart from competing systems in this category. Whether you’re running analog CO lines, ISDN-PRI trunks, or VoIP gateways, the CPU manages it all from one central unit.

The system is equipped with a built-in RS232 and USB port for onsite access, and can also be configured for remote programming and maintenance via the internet — a significant advantage for IT teams managing multi-branch operations across Dhaka, Chittagong, or beyond. The KX-TDA200 also supports conference calling from 3-party up to 8-party calls simultaneously, making it a practical fit for organizations with frequent internal collaboration needs. Kx-tdKx-td

Panasonic KX-TDA200 CPU Specifications

Why You Buy Panasonic KX-TDA200 CPU

• Future-proof scalability without system replacement: Expansion cards from a KX-TDA100 can be unplugged and plugged directly into the KX-TDA200 without purchasing a whole new system — meaning Bangladeshi businesses can grow their communication infrastructure incrementally without throwing away past investment. For procurement managers and IT directors, this translates directly into lower total cost of ownership.
• Hybrid connectivity for analog-to-IP transition: The KX-TDA200 CPU supports ISDN Primary Rate Interface (PRI) with QSIG, T1 trunking, analog CO lines, VoIP extensions, and DECT multi-cell wireless — all from a single platform. Organizations in Bangladesh still transitioning from legacy PSTN to IP-based telephony don’t have to choose one or the other; this CPU handles both simultaneously.
• Enterprise-grade call management at a mid-range price point: Built-in features include Automatic Route Selection (ARS), Toll Restriction, Uniform Call Distribution (UCD), Direct Inward System Access (DISA), and Digital Voice Mail Integration — functionality that traditionally required expensive add-on systems. For hotels, hospitals, and corporate head offices in Dhaka, this means enterprise call handling without enterprise-level spending.

FAQ

Q1: What is the maximum capacity of the Panasonic KX-TDA200 CPU in Bangladesh?

The KX-TDA200 supports up to 256 wired extensions (with the Memory Expansion Card), up to 128 trunks, and up to 128 wireless DECT handsets — all spread across 11 free universal slots with a total of 192 ports. This makes it ideal for medium-to-large enterprises in Bangladesh with 50 to 200+ users.

Q2: Does the Panasonic KX-TDA200 CPU support SIP trunking?

The KX-TDA200 in its standard configuration does not support SIP trunking or SIP extensions; an upgrade to the KX-TDE processor is required for full SIP capability. If SIP is a core requirement for your setup, the KX-TDE200 is the recommended alternative. However, for organizations running on traditional PSTN and ISDN lines, the KX-TDA200 CPU remains a fully capable and cost-effective solution.
