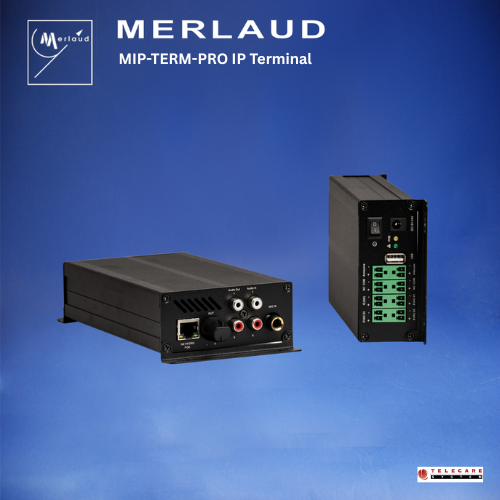

Merlaud MIP-TERM-PRO IP Terminal

Description

Merlaud MIP-TERM-PRO is a compact IP terminal station with three EVAC/fire alarm triggers, dry-contact announce and intercom, a 6.35 mm microphone input and a built-in amplifier, and it supports battery backup for power outages.

Key Features of Merlaud MIP-TERM-PRO IP Terminal

• Three EVAC / fire alarm triggers: Three trigger inputs are available for EVAC or fire alarm announcements.
• Announce and intercom via dry contact trigger: A dry contact trigger can start an announcement or an intercom call.
• 6.35 mm dynamic microphone support: A standard dynamic microphone can be connected directly to the terminal.
• RCA audio input and output: Connects other audio sources or equipment, with volume control for the internal amplifier.
• 3W (max 10W) 8Ω speaker output: The built-in amplifier drives an 8Ω speaker directly, with output listed as 3W and up to 10W maximum.
• Four built-in timing program schedules: Routine announcements and music can run automatically.
• Automatic recording: Audio is recorded automatically for tracing and later review.
• USB port: Plays music from a USB drive and is also used for firmware upgrades.
• Communication delay under 50 ms: Audio over the network stays responsive.
• 12~24VDC supply, PoE optional, battery backup supported: Wide-range DC input with an optional PoE variant, so confirm the variant before ordering.

Why Choose Merlaud MIP-TERM-PRO IP Terminal?

MIP-TERM-PRO combines trigger inputs, an amplifier, a microphone input and a scheduler in one compact terminal. Fewer separate boxes means a simpler install.

Dry contact triggers let announcements and intercom start from external contact-closure devices, and automatic recording keeps a record for tracing. One terminal covers both announcements and intercom.

Real-World Performance Note: Load-shedding is a routine risk for paging systems in Bangladesh. The MIP-TERM-PRO accepts a 12~24VDC wide-range supply and supports battery backup, so the terminal can stay available during mains interruptions. Battery type and capacity are not listed, so size the backup with your installer.

Who Should Buy Merlaud MIP-TERM-PRO IP Terminal?

• Building and facility managers in Gulshan or Motijheel who need trigger-based EVAC playback
• Factory and warehouse managers around Gazipur or Ashulia who want dry-contact control
• School and college administrators in Dhanmondi or Mirpur managing small-zone announcements
• System integrators in Dhaka building networked IP audio projects
• Not recommended for: large halls or open areas that need more than 10W from the built-in amplifier

Frequently Asked Questions

What is the Merlaud MIP-TERM-PRO IP terminal?

It is a compact IP terminal station with three EVAC/fire alarm triggers, a 6.35 mm microphone input and a built-in amplifier. It also records automatically and offers four timing schedules.

Can the MIP-TERM-PRO start announcements and intercom?

Yes. A dry contact trigger can start an announcement or intercom, and three triggers are available for EVAC or fire alarm use. No fire-code certification is claimed, so confirm project requirements with your installer.

What speaker output does the MIP-TERM-PRO provide?

The supplier lists a 3W (max 10W) output into an 8Ω speaker. The data does not say which figure is rated and which is peak, so confirm with Telecare System before matching speakers.

How is the MIP-TERM-PRO powered?

It runs on a 12~24VDC wide-range supply, PoE is listed as optional, and battery backup is supported. Battery type and capacity are not stated, so confirm the PoE variant and size the backup with your installer.

The MIP-TERM-PRO gives you three EVAC triggers, dry-contact intercom and automatic recording in one compact terminal for your site.
