Cambium N000000L142A

Description

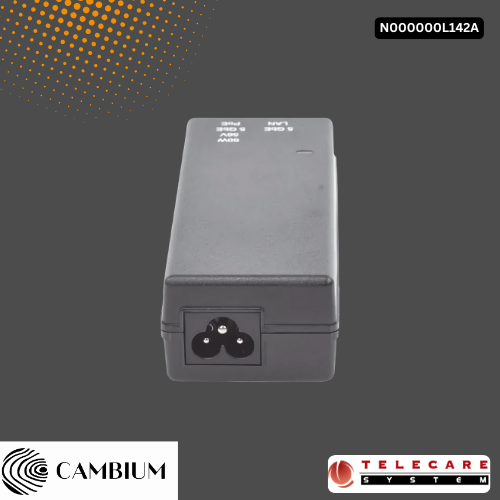

Cambium N000000L142A PoE, 60W, 56V, 5GbE DC Injector, Indoor: The Cambium N000000L142A is an indoor Power over Ethernet (PoE) injector designed to provide both data and power to compatible PoE devices such as IP cameras, access points/radios, and VoIP phones. It is ideal for deploying network devices where separate power supplies are impractical, offering a compact and efficient solution.

Cambium N000000L142A Product Specifications:

• Model Number: N000000L142A
• Input Power: 90 to 264 VAC, 50 / 60 Hz
• Output Power: 56 VDC, 60W (maximum)
• Data Connectors: 2 x RJ-45 (Data In; Data+Power Out)
• Ethernet Speed: 5 Gigabit Ethernet passthrough data rates
• AC Power Input Connection: 3-wire AC inlet; C6
• Efficiency: Energy Level VI
• Hold-up Time: 10 ms minimum
• Operating Temperature: 0°C to 50°C (32°F to 82°F)
• Operating Humidity: 10-90% non-condensing
• Environmental Use: Indoor
• Surge Protection: Yes (ESD: EN61000-4-2, Line Surge: EN61000-4-5)
• Certifications: RoHS, UL, WEEE, CE, EN 60950-1, EN 62368-1, EN 301 489-1, EN 301 489-17, EN 55032, EN 55024, EN50385, EN300328, EN301893
• LED Indicators: Yes
• Dimensions (L x W x H): Approximately 86 x 47.4 x 30 mm
• Compatibility: Designed for use with Cambium cnWave Client Nodes (v3000, v5000) and other PoE devices requiring up to 60W.

Cambium N000000L142A PoE, 60W, 56V, 5GbE DC Injector, Indoor Product Key Features:

• Provides both data and power over a single Ethernet cable.
• Delivers up to 60W of Power over Ethernet (PoE).
• Supports 5 Gigabit Ethernet data rates.
• Features surge protection to safeguard connected devices from voltage spikes.
• Meets stringent Level VI energy efficiency requirements.
• Compact design for easy indoor deployment.
• Equipped with LED indicators for status monitoring.
• Wide operating temperature range for various indoor environments.
