Description

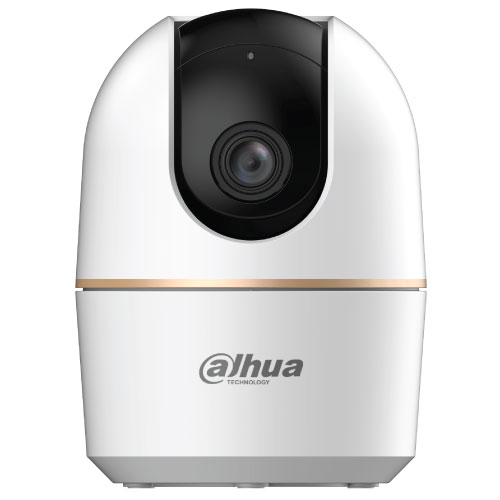

Dahua DH-IPC-H5AE is a high-quality 5MP WiFi IP camera designed for reliable surveillance. With HD video resolution, advanced motion detection, and night vision, this camera ensures clear and secure monitoring day and night. The wireless connectivity makes installation easy, eliminating the need for complex wiring. It supports remote viewing via mobile apps, allowing you to monitor your premises from anywhere. Ideal for home and office security, the DH-IPC-H5AE delivers crystal-clear images with real-time alerts for enhanced safety.
Key Features:
✅ WiFi Connectivity – No messy wiring, easy setup
✅ HD Video Quality – Crisp and clear footage
✅ Motion Detection – Real-time alerts for suspicious activity
✅ Night Vision – Clear images even in low-light conditions
✅ Mobile App Support – Remote viewing from anywhere
Dahua DH-IPC-H5AE Specification
| Camera | ||||||||||||||||||
| Image Sensor | 1/3″ CMOS | |||||||||||||||||
| Max. Resolution | 2880 (H) × 1620 (V) | |||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |||||||||||||||||
| Illumination Distance | Up to 10 m (32.81 ft) (IR) | |||||||||||||||||
| Illuminator On/Off Control | Auto | |||||||||||||||||
| Illuminator Number | 1 (IR LED) | |||||||||||||||||
| Angle Adjustment | Pan: 0° to 355°; | |||||||||||||||||
| Tilt: –5° to 80° | ||||||||||||||||||
| Lens | ||||||||||||||||||
| Max. Aperture | F2.0 | |||||||||||||||||
| Field of View | H: 74°; V: 41°; D: 88° | |||||||||||||||||
| Intelligence | ||||||||||||||||||
| Human Detection | Yes | |||||||||||||||||
| Video | ||||||||||||||||||
| Video Compression | H.265 | |||||||||||||||||
| Video Frame Rate | Main stream: 2880 × 1620@(1-25/30 fps) | |||||||||||||||||
| sub stream: 640 × 360@(1-25/30 fps) | ||||||||||||||||||
| *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | ||||||||||||||||||
| Resolution | 5M (2880 × 1620); nHD (640 × 360) | |||||||||||||||||
| Video Bit Rate | H.265: 80 kbps–4096 kbps | |||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | |||||||||||||||||
| WDR | DWDR | |||||||||||||||||
| Motion Detection | Yes | |||||||||||||||||
| Image Rotation | 0°/180° | |||||||||||||||||
| Audio | ||||||||||||||||||
| Built-in MIC | Yes, built-in Mic | |||||||||||||||||
| Built-in Speaker | Yes, built-in speaker | |||||||||||||||||
| Audio Compression | G.711a | |||||||||||||||||
| Network | ||||||||||||||||||
| Network Port | RJ-45 (10/100 Base-T) | |||||||||||||||||
| Wi-Fi | IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G | |||||||||||||||||
| Storage | Micro SD card (up to 256 GB) | |||||||||||||||||
| Management Software | DMSS | |||||||||||||||||
| Mobile Client | iOS;Android | |||||||||||||||||
| Certification | ||||||||||||||||||
| Certifications | CE | |||||||||||||||||
| Power | ||||||||||||||||||
| Power Supply | 5 VDC | |||||||||||||||||
| Power Consumption | Basic: 1.9 W; | |||||||||||||||||
| Max.: 4 W (live + IR + PT rotation) | ||||||||||||||||||
| Environment | ||||||||||||||||||
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) | |||||||||||||||||
| Operating Humidity | ≤95% (RH), non-condensing | |||||||||||||||||
| Structure | ||||||||||||||||||
| Casing Material | Plastic | |||||||||||||||||
| Product Dimensions | φ77.8 mm × 108.1 mm (φ3.06″ × 4.26″) | |||||||||||||||||
| Net Weight | 195 g (0.30 lb) | |||||||||||||||||
